Brand Name : HM
Model Number : ceramic filter 455khz CFUCG455KC4X-R0,Alternative model:JGK01-1397B LTC455FU/LTC455GU/LTC455HU/LTC455IU/LTC455ITU/LTC455JTU
Certification : Rohs,ISO
Place of Origin : wuxi
MOQ : 1000
Price : $1.25
Payment Terms : paypal, Western Union, MoneyGram
Supply Ability : 1000000pcs PER YEAR
Delivery Time : 35 day
Packaging Details : REEL
Center frequency : 455khz
Bandwidth(3dB) : ±14.0KHz min
(6dB) Bandwidth(6dB) : ±17.5KHz min
Bandwidth(40dB) : ±40.0KHz min
(fo±100KHz) Stop Band Attenuation : 25dB min
Ripple (f0±2khz) : 1.0dB max
Insertion Loss (At minimum loss point : 4.0dB max
Temperature Stability (-20℃~ +80℃ ) : ±0.5% max (-25℃ ~ +80℃)
(0.1~1MHz)Spurious Response : 20dB min
(fo±2.0 kHz)GDT Ripple deviation : 15μsec max
Operating Temperature : -20℃ ~ +80℃
Storage Temperature : -40℃ ~ +85℃
Insulation Resistance(DC 25V 1 minute) : 100MΩ min
Input/Output Impedance : 1.0 KΩ
| NO. | Item | Specification |
| 4 – 1 |
 Center Frequency f0 (Center of 6dB Bandwidth)  |  			455±1.0 KHz |
| 4 – 2 | Bandwidth(3dB) | ±14.0KHz min |
| Bandwidth(6dB) | ±17.5KHz min | |
| Bandwidth(40dB) | ±40.0KHz min | |
| 4 – 3 | Stop Band Attenuation | 25dB min |
| 4 – 4 | Ripple (f0±5khz) | 1.0dB max |
| 4 – 5 |
 Insertion Loss (At minimum loss point)  |  			4.0dB max |
| 4 – 6 |  			 Temperature Stability (-20℃~ +80℃ )  |  			 			 ±0.5% max (-25℃ ~ +80℃)  |
| 4-7 | (0.1~1MHz)Spurious Response | 20dB min |
| 4-8 | (fo±2.0 kHz)GDT Ripple deviation | 15μsec max |
| 4-9 | Operating Temperature | -20℃ ~ +80℃ |
| 4-10 | Storage Temperature | -40℃ ~ +85℃ |
| 4-11 | Insulation Resistance(DC 25V 1 minute) | 100MΩ min |
| 4 – 12 | Input/Output Impedance | 1.0 KΩ |
|
 NO.  |
 Item  |
 Measurement condition  |
 Requirement  |
|


 7-1  |


 Random Drop  |
 Filter shall be measured after 3 times random drops from the height of 30cm on concrete floor  |

 No visible damage and it meet Table 1  |
|



 7-2  |



  |

  |  		|
| Vibration | Filter shall be measured after being applied | No damage and it meet | |
| vibration of amplitude of 1.5mm with 10-55Hz | Table 1. | ||
| band of vibration frequency to each of 3 | |||
| perpendicular directions for 2 hours | |||
|


 7-3  |


 Solderability  |  			||
|
 Lead terminals are immersed in aide solder for 5 sec and then immersed in soldering bath of  |
 At least 95% lead terminals shall be covered  |  		||
| 230±5℃, for 3±0.5 sec. | with solder. | ||
|




 7-4  |



 Substrate Bending Test  |




 It shall meet table 1.
  |  		|
|
 Apply pressure in the direction of arrow (see Fig. 3) at a rate of about 0.5mm per second until it  |  		|||
| reaches a | |||
| bend of 3mm and hold for 30 seconds. | |||
|





 7-5  |






  |





  |  		|
| Adhesion | A static load of 20N to the direction of the | It shall meet Table 1. | |
| arrow (see | |||
| Fig. 4) shall be applied on the core of the | |||
| component | |||
|  			 and hold for 10 seconds. Filter shall be
  |
|  			 soldered correctly and tightly to PCB.  |  			|||
|







 7-6  |





 Reflow Soldering  |






 It shall meet Table 1.
  |  		|
|
 Put on the solder paste on the printed wiring board (pattern is shown in Fig. 5), the samples  |  		|||
| shall be mounted and soldered under the | |||
| condition (pattern is shown in Fig. 6), then it | |||
| shall be subjected to the room atmosphere for | |||
| 24 hours prior to the measurement. |
|
 NO.  |
 Item  |
 Measurement condition  |
 Requirement  |
|




 8 – 1  |




 Humidity  |



 It shall meet Table 1.  |  		|
|
 After being placed in a chamber with 90-95% R.H. at 40±2℃ for 100 hours and then being  |  		|||
| placed in room temperature for 1 hour, filter | |||
| shall be measured. | |||
|





 8 – 2  |




  |




  |  		|
| Resistance to | Lead terminals are immersed up to 1.5mm | ||
| Solder Heat | from filter’s body in soldering bath of 350± | It shall meet Table 1. | |
| 10℃, for 3±0.5 sec. And then filter shall be | |||
| measured after being placed in room | |||
| temperature for 1 hour. | |||
|



 8 – 3  |

 High Temperature  |



 It shall meet Table1  |  		|
|
 After being placed in a chamber with 80±2 ℃,for 100 hours and then being placed in room temperature for 1 hour , filter shall be  |  		|||
| measured. | |||
|


 8 – 4  |
 Low Temperature  |
 After being placed in a chamber with -20±2 ℃,for 100 hours and then being placed in  |

 It shall meet Table 1  |
|  			 room temperature for 1 hour, filter shall be measured.  |  			|||
|








 8 – 5  |








 Heat Shock  |








 It shall meet Table 1  |  		|
| After being kept at room temperature, filter shall be placed at temperature of –55 ℃ , for | |||
| 30 minutes, then be placed at temperature. 85 | |||
| ℃, for 30 minutes. After that returned to –55 | |||
| ℃ again. Repeated above cycle for 5 times. | |||
| After being kept in room temp. for 1 hour, | |||
| filter shall be measured |

Table 1
|
  |  			 			 Specification  |
|
 Center Frequency  |
 455±2.0 KHz max  |
|
 Bandwidth(6dB)  |
 ±17.5KHz min  |
|
 Selectivity(40dB)  |
 ±40.0 KHz max  |
|
 Stop Band Attenuation(fo±100KHz)  |
 25dB min  |
|
 Ripple  |
 1.0dB max  |
|
 Insertion Loss  |
 5.0dB max  |





|
                                             |

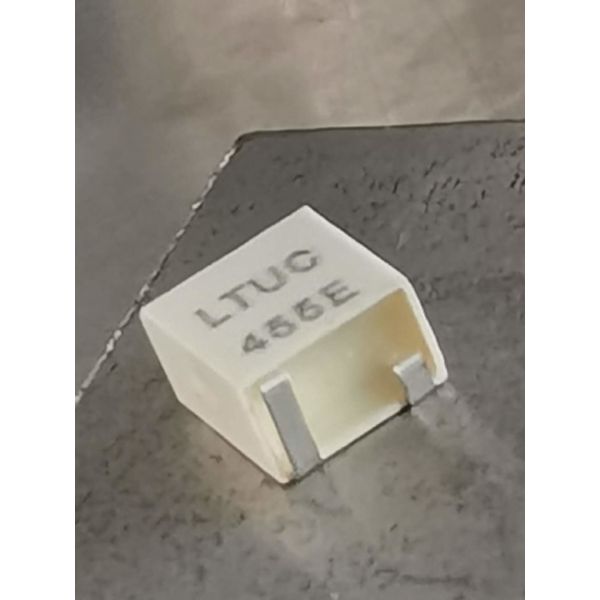

                        CFUKF455KA2X R0 455khz Electronic Components Active And Passive Images |
